产品优势

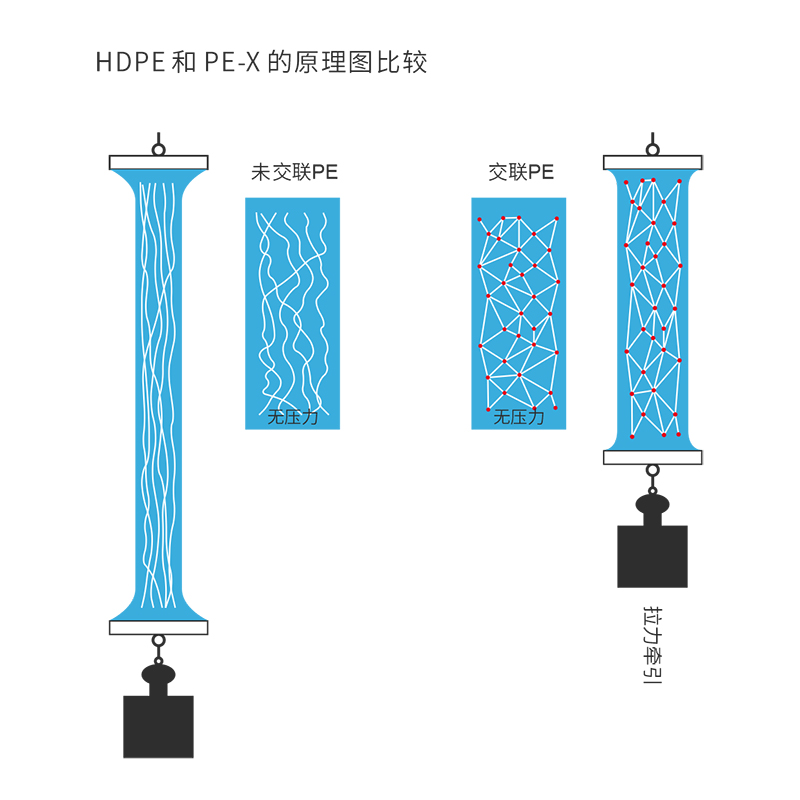

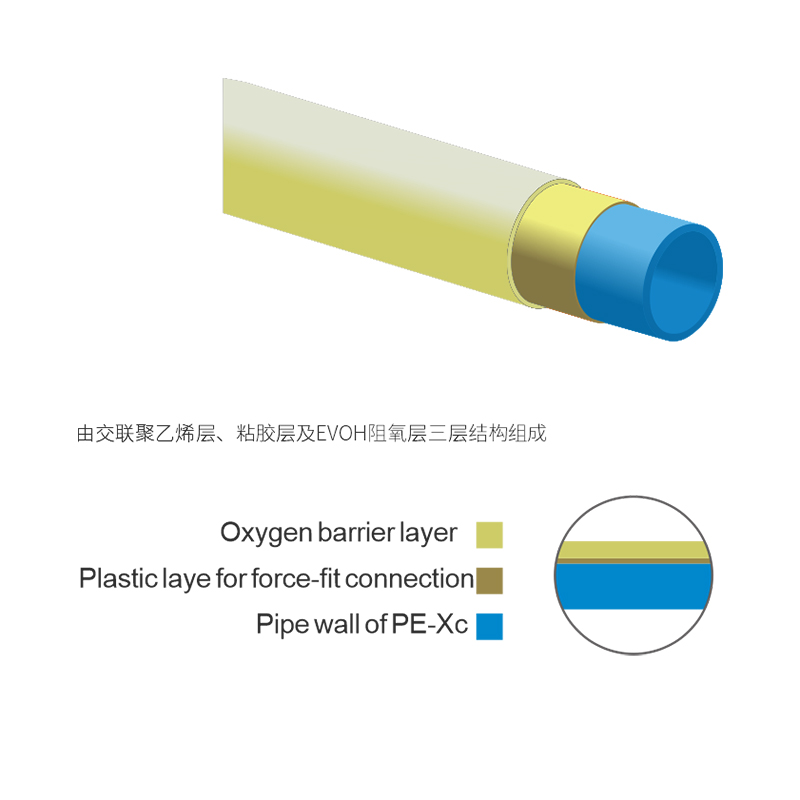

图本PE-HDXc阻氧管道由高密度交联聚乙烯与EVOH共挤后,采用β 射线纯物理照射交联工艺一次成品,其管材不仅具有其他PEX管所共有的耐热、耐寒、耐化学品等性能优点;还具有交联度均匀、纯净度高、卫生性能好等特性,符合《欧盟饮用水水质指令》[98/83/EC],特别适应于纯净水等高纯净要求的流体输送。
本产品执行ISO15875与ISO17455标准,采用ClassA设计标准,适用Class5环境条件下的高温采暖系统运行; 本产品应用行业领域:给排水、供暖、空调等领域; 本产品适配连接方式:滑紧、快插、卡套。

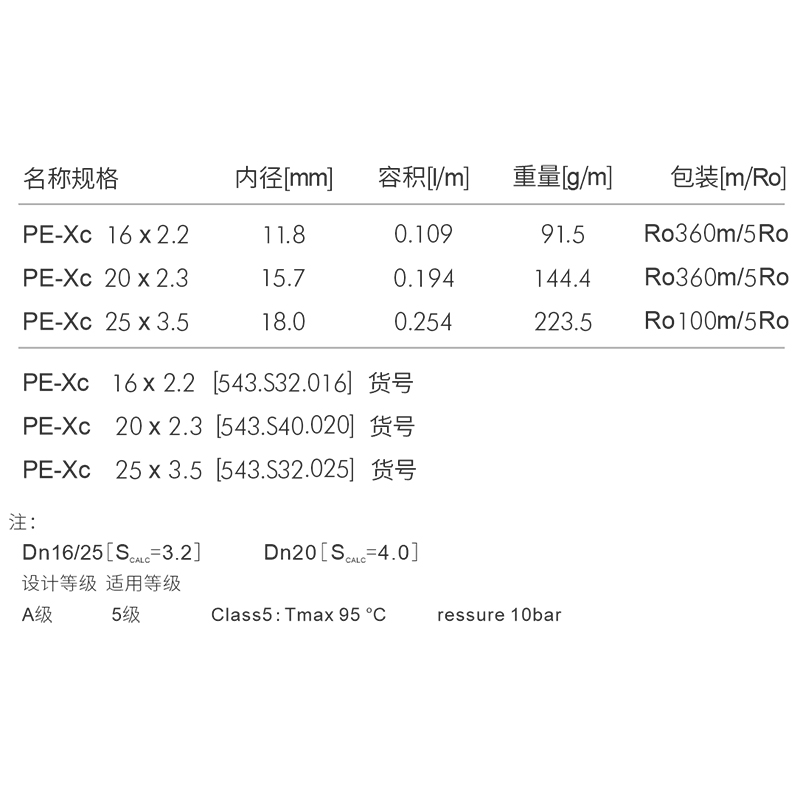

基本参数
ISO15875标准PE-HDXb型聚乙烯管,具有更优的卫生性,优质PE-HD基料,EVOH阻氧层,符合DIN4726/ISO17455,交联更均匀,纯净度更高。
工作温度: <75°C
最高温度: 95°C
工作压力: 10bar
符合ISO10508标准Class5级所有要求
最小弯曲半径:5xd[d=外径]
安装温度:-5°C至+30°C
生产标准
标准成就品质
High Standard achievement quality
ISO15875 Plastics piping systems for hot and cold
water installations — Crosslinked
polyethylene [PE-X]
ISO17455 Plastics piping systems-Multilayer
pipes-Determination of the oxygen
permeability of the barrier pipe
ISO10508 Plastics piping systems for hot and
cold water installations -guidance
for classification and design
ISO4065 Thermoplastics pipes-Universal
wall thickness table
ISO1746 Rubber or plastics hoses
and tubing-Bending tests
ISO4672 Rubber and plastics
hoses-Sub-ambient temperature
flexibility tests
ISO1167 Thermoplastics pipes,
fittings and assemblies for the
conveyance of fluids-Determination
of the resistance to internal pressure
DIN4726 Warm water surface heating
systems and radiator connecting
systems-Plastics piping systems and multilayer piping systems
