产品优势

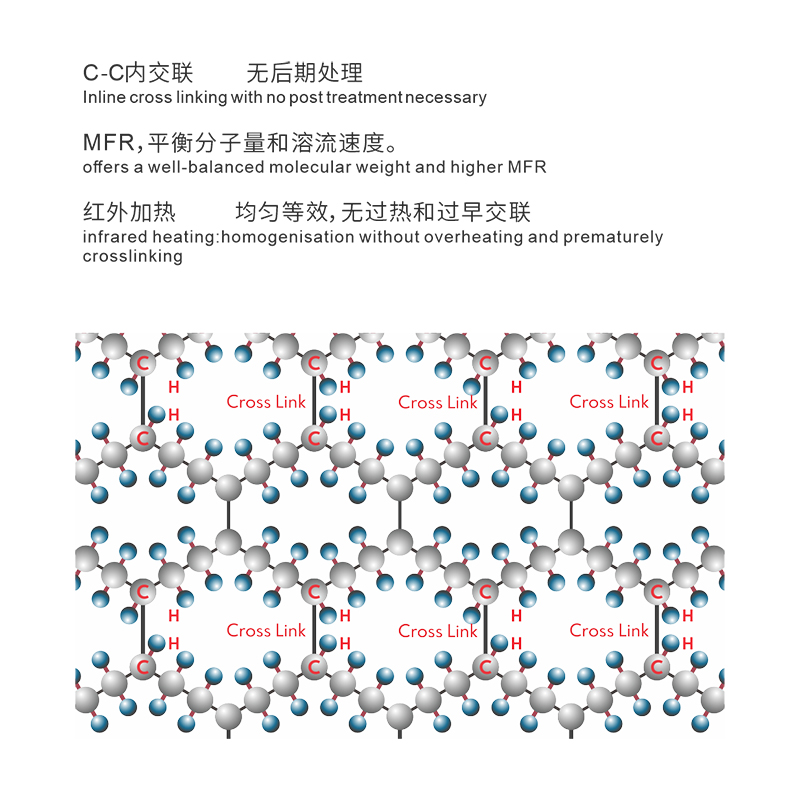

图本PE-HDXa阻氧管道由高密度交联聚乙烯与POK膜共挤,并通过氧化物内交联一次成品,除PE-Xa独特的柔韧性与记忆性外; 管道在极低温度下表现出高抗冲击与高承压性,管道在高氯的运行环境中,耐氯性得到充分的体现;POK阻氧层保证其良好的阻氧性能, 延长系统使用寿命。 本产品执行ISO15875与ISO17455标准,采用ClassC设计标准,适用Class4环境条件下的高温采暖系统运行; 本产品应用行业领域:给排水、供暖、空调等领域; 本产品适配连接方式:快易、卡压、卡套。

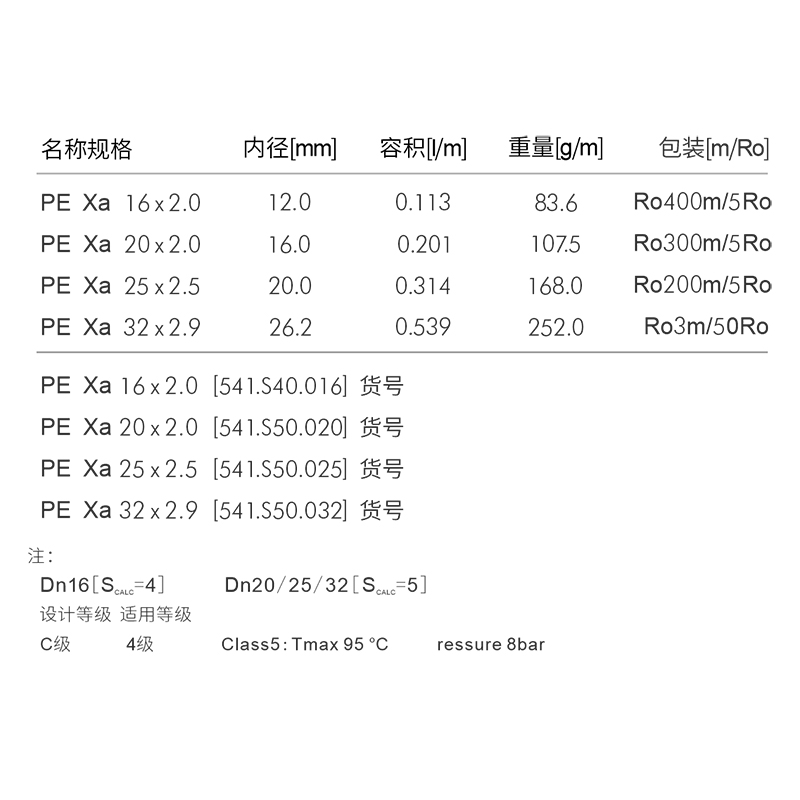

基本参数
ISO15875标准PE-HDXa型聚乙烯交联管,选用优质PE-HD基料,POK阻氧层,符合DIN4726/ISO17455,具有高交联度,优良的蠕变性。
工作温度: <75°C
最高温度: 95°C
工作压力: 8bar
符合ISO10508标准Class4级所有要求
最小弯曲半径:5xd[d=外径]
安装温度:-5°C至+30°C
生产标准
标准成就品质
High Standard achievement quality
ISO15875 Plastics piping systems for hot and cold
water installations — Crosslinked
polyethylene [PE-X]
ISO17455 Plastics piping systems-Multilayer
pipes-Determination of the oxygen
permeability of the barrier pipe
ISO10508 Plastics piping systems for hot and
cold water installations -guidance
for classification and design
ISO4065 Thermoplastics pipes-Universal
wall thickness table
ISO1746 Rubber or plastics hoses
and tubing-Bending tests
ISO4672 Rubber and plastics
hoses-Sub-ambient temperature
flexibility tests
ISO1167 Thermoplastics pipes,
fittings and assemblies for the
conveyance of fluids-Determination
of the resistance to internal pressure
DIN4726 Warm water surface heating
systems and radiator connecting
systems-Plastics piping systems and multilayer piping systems
