产品优势

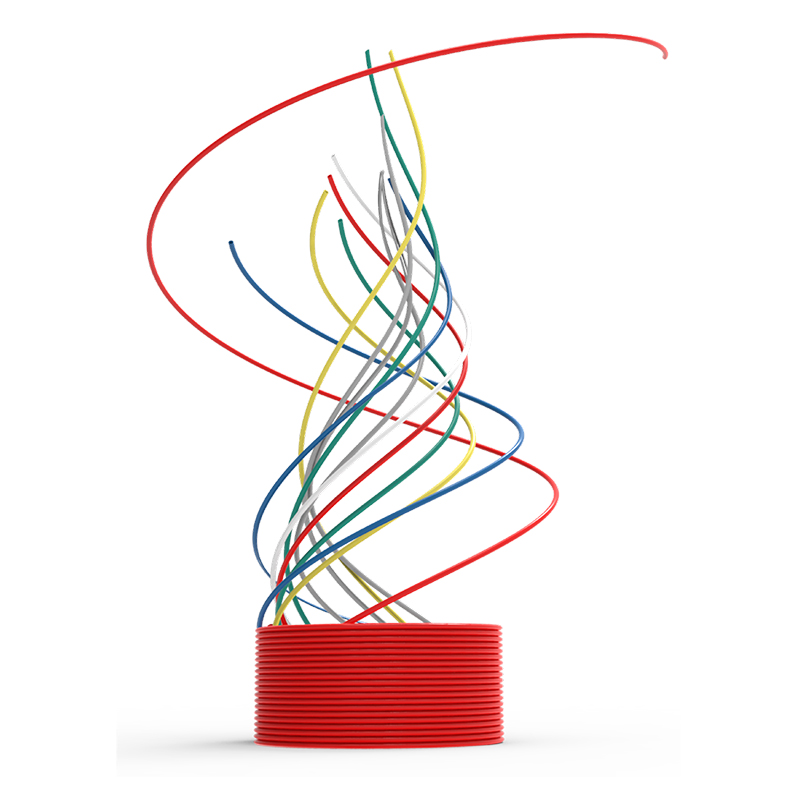

图本PERTⅡ型管道由非交联聚乙烯与pok膜共挤制成,基础材料XSene XRT 70双峰分子结构设计,具有优良的耐高温腐蚀性与耐低温冲击性能;pok膜阻氧技术保证其管材保持其良好的气体阻隔性能作为高质量输送管道,广泛应用于市政、商业建筑及室外融雪环境,满足于95°C以下高温腐蚀性流体长期运行使用。
PERT95柔性管道执行ISO22391与ISO17455标准采用C级设计标准,产品适用Class4环境条件下的制冷与供热系统运行;
本产品应用行业领域:给排水、供暖、空调等领域; 本产品适配连接方式:快插、卡压、卡套。

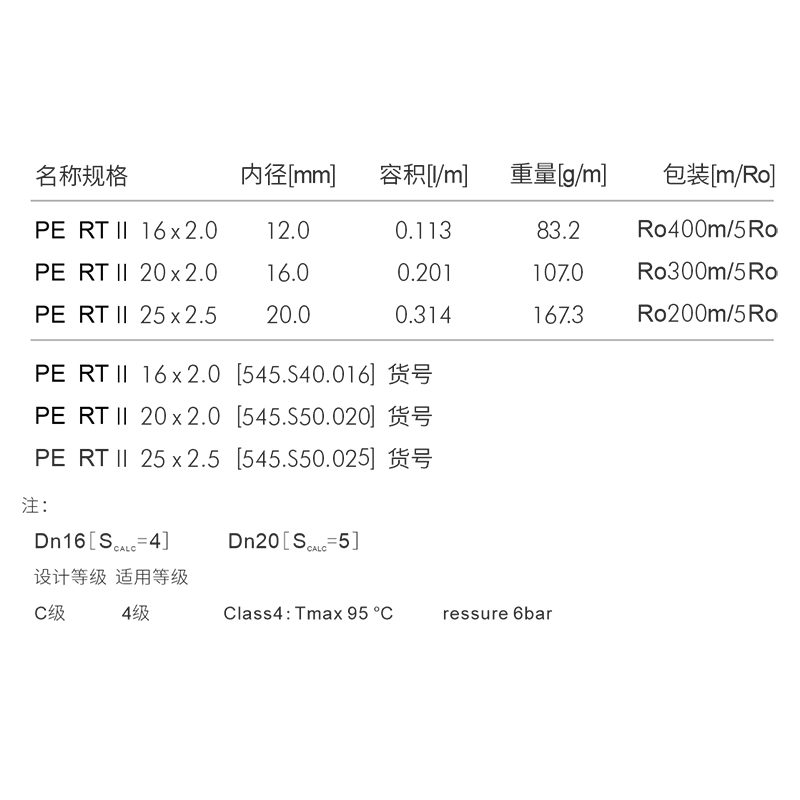

基本参数
ISO22391标准PERTⅡ型聚乙烯管,具有更高的耐热性优质PE-HD基料,POK阻氧层符合DIN4726/ISO17455标准,耐高温腐蚀性与耐低温冲击性能
工作温度: < 70°C
最高温度: 95°C
工作压力: 6bar
符合ISO10508标准Class4级所有要求
最小弯曲半径:5xd[d=外径]
安装温度:-5°C至+30°C
生产标准
标准成就品质
High Standard achievement quality
ISO22391Plastics piping systems for hot and cold
water installations-Polyethylene of
raised temperature resistance [PE-RT]
ISO17455 Plastics piping systems-Multilayer
pipes-Determination of the oxygen
permeability of the barrier pipe
ISO10508 Plastics piping systems for hot and
cold water installations -guidance
for classification and design
ISO4065 Thermoplastics pipes-Universal
wall thickness table
ISO1746 Rubber or plastics hoses
and tubing-Bending tests
ISO4672 Rubber and plastics
hoses-Sub-ambient temperature
flexibility tests
ISO1167 Thermoplastics pipes,
fittings and assemblies for the
conveyance of fluids-Determination
of the resistance to internal pressure
DIN4726 Warm water surface heating
systems and radiator connecting
systems-Plastics piping systems and multilayer piping systems
