产品优势
图本PERT80柔性管道根据ISO22391标准,采用基础材料Lucene™SP980制成;其独特的分子结构,具有线性乙烯主链和八烯侧链构成,产品保持了高韧性和抗疲劳性等特征;作为高质量地面加热管道,广泛应用于住宅、商业建筑及室外融雪环境,满足于6 Bar水压70°C以下水温系统,长期运行使用。
图本PERT80非交联中密度耐热聚乙烯管道,采用C级设计标准,产品适用Class4环境条件下的制冷与供热系统运行;
本产品适配连接方式:快插、卡压、卡套。

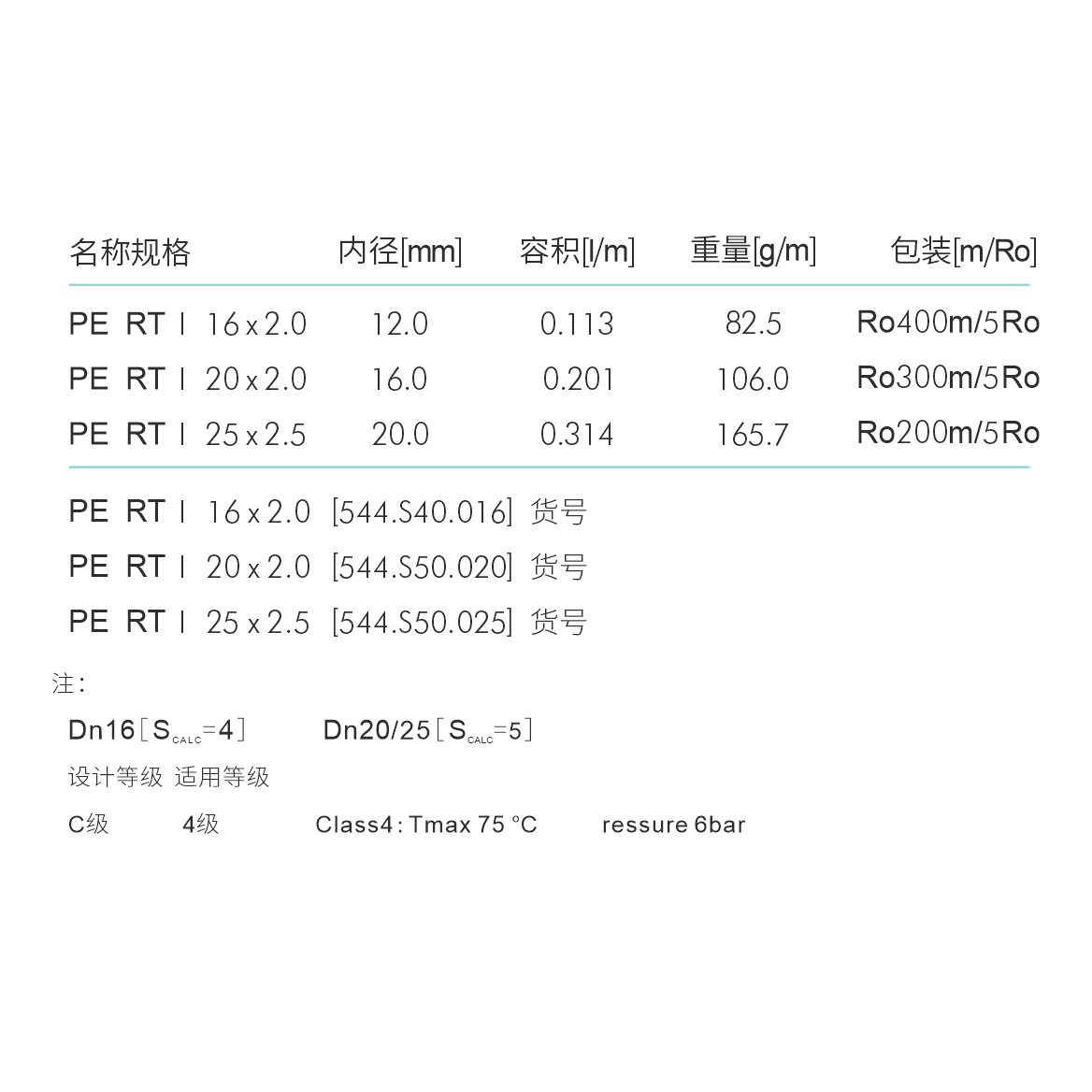

基本参数
ISO22391标准PERT中密度耐热聚乙烯管,采用
优质PE-MD基料,匀质性好、性能稳定,具有更
优良的抗热蠕变性能与更充分的柔韧性能。
工作温度: <70°C
最高温度: 75°C
工作压力: 6bar
符合ISO10508标准Class4级所有要求
最小弯曲半径:5xd[d=外径]
安装温度:-5°C至+30°C
生产标准
ISO22391Plastics piping systems for hot and cold
water installations-Polyethylene of
raised temperature resistance [PE-RT]
ISO10508 Plastics piping systems for hot and
cold water installations -guidance
for classification and design
ISO4065 Thermoplastics pipes-Universal
wall thickness table
ISO1746 Rubber or plastics hoses
and tubing-Bending tests
ISO4672 Rubber and plastics
hoses-Sub-ambient temperature
flexibility tests
ISO1167 Thermoplastics pipes,
fittings and assemblies for the
conveyance of fluids-Determination
of the resistance to internal pressure

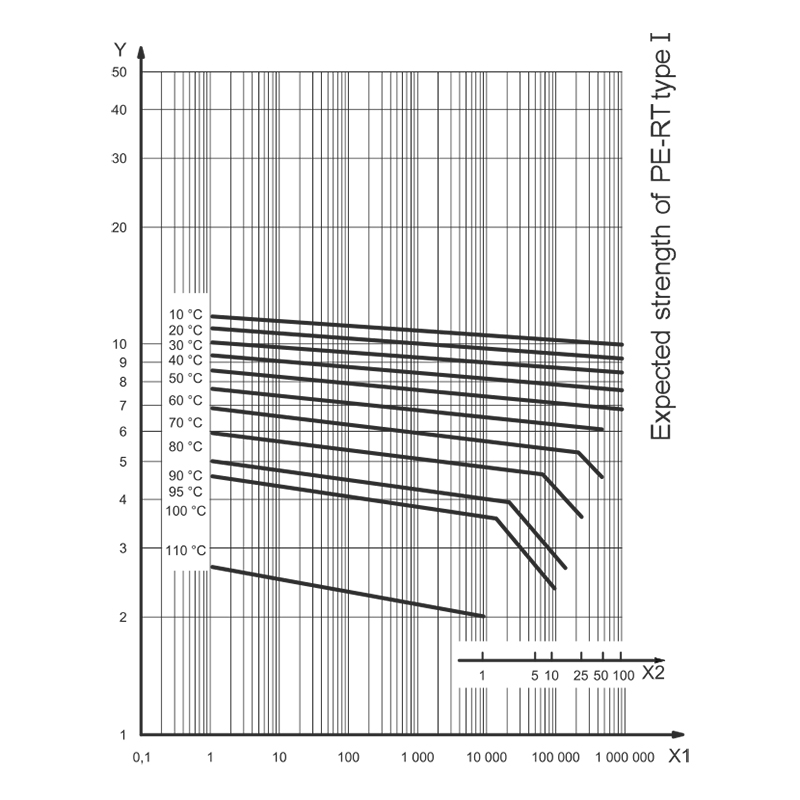

ISO 9080 Plastics piping and ducting
systems - Determination of the long-term hydrostatic
strength of thermoplastics materials in pipe form
by extrapolation
